    1064nm Laser Crystal Nd Ce YAG Cubic Crystal Structure For No Water Cooling

    Ask Lasest Price
    Brand Name : STAR OPTIC
    Model Number : Nd:Ce:YAG
    Certification : RoHS, ISO9001
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 50000pcs/Month
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    1064nm Laser Crystal Nd Ce YAG Cubic Crystal Structure For No Water Cooling

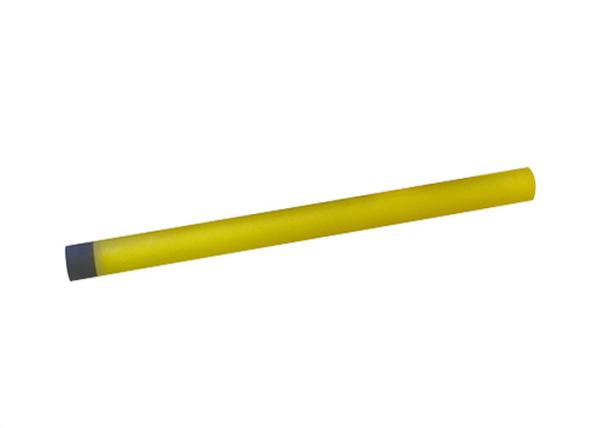

    Laser Crystal Nd:Ce:YAG

    Overview:

    Nd:Ce:YAG is an excellent laser material used for no-water cooling and miniature laser systems. The thermal distortion of Nd:Ce:YAG is appreciably less and the output laser energy is greater(30%-50%) than that in Nd:YAG at the same pumping. It is the most ideal laser material for air cooling laser and is also suitable for different modes of operation (pulsed, Q-switched, mode locked) and high-average power lasers.


    General Specifications Of Nd:Ce:YAG:

    MaterialNd:Ce:YAG
    Dopant concentrationNd:1.0 - 1.1atm% Ce:0.05-0.1atm%
    Orientation<111> or <100>
    DimensionDiameter:1mm-30mm Length:1mm-115mm(upon customer’s request)
    Wavefront distortion<λ/10 per inch@632.8nm
    Extinction ratio>30dB (depends on actual sizes)
    Diameter tolerance+0/-0.04mm
    Length tolerance+0.5/-0mm
    Chamfer<0.1mm@45°
    Chips<0.1mm
    Barrel finish50-80 micro-inch(RMS)
    Clear Aperture>95%
    Flatnessλ/10 per inch@632.8nm
    Scratch/Dig10-5 @MIL-0-13830A
    Perpendicularity<5 arc minutes
    Parallelism<10 arc seconds
    Damage threshold>750MW/cm2@1064nm 10ns 10HZ
    Anti-Reflection coatingR<0.15%@1064nm per surface
    High-Reflection coatingStandard HR coating with R>99.8%@1064nm and R<5%@808nm

    Physical and Optical Properties Of Nd:Ce:YAG:

    Crystal StructureCubic
    Lattice constant12.01Å
    Melting Point1970°
    Rupture stress1.3-2.6*103 kg/cm2
    Density4.55g/cm3
    Mohs hardness8.5
    Thermal Expansion Coefficient[100] Orientation--8.2x10-6/oC (0-250oC)
    [110] Orientation--7.7x10-6/oC (0-250oC)
    [111] Orientation--7.8x10-6/oC (0-250oC)
    Laser transition4F3/2 --> 4I11/2
    Laser wavelength1064nm
    Photon energy1.86×10-19J
    Emission linewidth4.5Å @1.064µm
    Stimulated emission cross section2.7-8.8x10-19 cm2 @Nd 1at%
    Fluorescence lifetime230µs
    Refractive Index1.8197 @1.064µm
