Overview:

The Biconvex (Double-convex) cylindrical lenses are mainly used to change the design requirements of the imaging size. For example, converting a point spot to a line spot, or changing the height of the image without changing the width of the image. They can be applied in linear detector lighting, barcode scanning, holographic lighting, optical information processing, computer, laser emission. Optical cylindrical lenses are also widely used in high-power laser systems and synchrotron radiation beamlines. At the same time, the requirements for biconvex cylindrical lenses are getting higher and higher, especially in high-power laser resonator cavities and long distances line interferometers and other high-precision testing instruments and devices.

General Specifications of Biconvex (Double-convex) Cylindrical Lens:

Material	UV Fused Silica
Design Wavelength	632.8nm
Surface Flatness	N<3(0.5)@632.8nm
Surface Quality	60/40 scratch-Dig
Diameter Tolerance	+0/-0.2mm
Thickness Tolerance	±0.2mm
Centration	<3 arc minutes
Focal Length Tolerance	±2%
Clear Aperture	>90%
Chamfer	Protective<0.5mmx45°

Standard Products of Biconvex (Double-convex) Cylindrical Lens:

Coating Options of Biconvex (Double-convex) Cylindrical Lens:

Normally our standard Biconvex (Double convex) cylindrical lenses are offered without coating.

Some of the applications require lens surfaces to be Antireflection coated to minimize the reflection light from each faces. We provide four classical coatings in below as well as support custom design wavelengths.

Single Layer MgF2 Coating	Multi-layer Anti-Reflective Coating

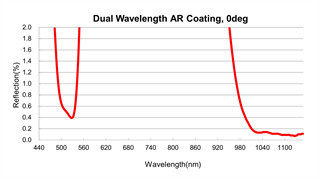

Boradband Anti-Reflective Coating	Dual Wavelength Anti-Reflective Coating

Custom Your Own Lens:

To Maximize and improve the possibility of transforming the design to production and save time, welcome to consult and discuss with us such as material availability, processing difficulty and cost-efficiency.

Who We Are?

Wuhan Star Optic Technology Co., Ltd as a registered Hi-Tech company has been focusing on manufacturing high precision of optical components ever since its foundation in 2017. It is located in Wuhan Optics Valley of China and was founded as a masterwork of our founders with more than 20 years background in production, R&D and supply chain of optical components. The company holds 30+ patents for design, production and inspection allows us to manufacturing professionally and technologically. With high quality standard, meticulous workmanship, strict quality control, professional service, Star Optics aims to provide our customers and partners with win-win cooperation.

What We Do?

1, Products and Applications:

Products: our products mainly fall into the following five categories.

• Optical Elements: Optical Materials, Lenses, Windows, Mirrosr, Beamsplitters, Prisms, Filters
• Polarizing Optics: Waveplates, Polarizers, Polarizing Beamsplitters, Depolarizers, Brewster Windows, Quartz Polarization Rotatosr, Optical Isolators, Lateral Displacement Polarization Beamsplitters
• Crystals: Laser Crystals, Nonlinear Crystals, Passive Q-Switch Crystals, E-O Crystals, Birefringent Crystals
• Coatings: Anti-Reflective Coatings, Partial Reflective Coatings, High Reflective Coatings, Polarization Beamsplitter Coatings, Non-Polarizing Beamsplitter Coatings, Dichroic Coatings, Interference Filter Coatings
• Optomechanics: Optical Mounts

Applications: our products are widely used in Lasers, Laser Processing Machines, Precision Measuring Instrument, Automation Equipment, Micro Measurement Systems, Surveying Equipment, Non-Destructive Testing, Medical and Biological Imaging, Fiber Communication, and etc. With the company concept of Result-driven, Detail-oriented, Client-focused, our products are well acknowledged and widely used in industry and science by North America, Europe and Southeast Asia.

2, Design:

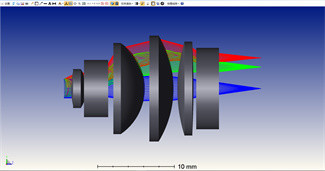

You have full design freedom, and we are able to work with complex designs to get you exactly what you need including optical design, mechanical design and optical coating design.

3, Production:

Have the ability to transfer designs into production from prototyping to serial production. Production process like grinding, polishing, centering, coating and measuring process are carried out by both manual and CNC machines.

4, Inspection:

The measurement process during and after production are carried out with precision metrology equipment, high sensitive interferometers and spectrometers. Measurement reports either e-version or paper-version will be provided upon shipment.

5, Packing:

Safe and dust-free packing are chosen to ensure you receive your products safe and sound and can use directly in your production lines.

6, Measuring Service:

You might have had experiences that you are using a product, but not clear about the exact specifications making you hesitate to source better options. Sending us a sample will allow us to help you figure out the details and transfer it to production.

Please contact us by follow ways if you don’t see what you are looking for in our standard product lines.
