    50.8mm Metal Coated Mirror Protected Aluminum Coating AOI Insensitive Mirror

    Metal Coated Flat Mirror, Metal-coated AOI Insensitive Mirror

    Overview:

    Metal Coated Flat Mirrors are convenient in that they are extremely broadband and can be used at any angle of incidence. We offer Gold, Silver and Aluminum high reflection coatings formed by vacuum deposition. All metallic reflectors can be over-coated with dielectric film of MgF2 or SiO2 in order to prevent oxidation of the metallic surface and provide abrasion resistance.


    • Protected Gold provides excellent, broadband infrared high reflectance
    • Protected Silver provides higher reflectance than aluminum throughout the visible and near IR
    • Protected Aluminum is economical solution for VIS applications
    • UV enhanced Aluminum provides good reflectance over a wide range and are mainly used in UV applications.

    Metal Coated Flat Mirror, Metal-coated AOI Insensitive Mirror


    General Specifications of Metal Coated Flat Mirror:

    Dimension Tolerance+0.0/-0.2mm
    Thickness Tolerance±0.2mm
    Surface Quality60/40
    Clear Aperture>90%
    FlatnessRefer to below list
    Coating

    Metal coating on one surface, rear surface ground or inspection polished


    • Enhanced Aluminum: Ravg>90%@400-700nm
    • Protected Aluminum: Ravg>87%@400-1200nm
    • UV Protected Aluminum: Ravg>80%@250-700nm
    • Protected Silver: Ravg>95%@400-12000nm
    • Enhanced Silver: Ravg>98.5%@700-1100nm
    • Protected Gold: Ravg>98%@2000-12000nm
    Damage Threshold>1J/cm2, 20ns, 20Hz, @1064nm

    Standard Products of Metal Coated Flat Mirror:

    Part NumberMaterialDiameter
    (mm)
    Thickness
    (mm)
    FlatnessCoating
    PAL1203-HBK712.73λ/10Protected Aluminum
    PAL2503-SBK725.43λ/4Protected Aluminum
    PAL2506-HBK725.46.35λ/10Protected Aluminum
    PAL5003-SBK750.83λ/4Protected Aluminum
    PAL5006-HBK750.86.35λ/10Protected Aluminum
    EAL1203-HBK712.73λ/10Enhanced Aluminum
    EAL2503-SBK725.43λ/4Enhanced Aluminum
    EAL2506-HBK725.46.35λ/10Enhanced Aluminum
    EAL5003-SBK750.83λ/4Enhanced Aluminum
    EAL5006-HBK750.86.35λ/10Enhanced Aluminum
    UVPAL1203-HBK712.73λ/10UV Protected Aluminum
    UVPAL2503-SBK725.43λ/4UV Protected Aluminum
    UVPAL2506-HBK725.46.35λ/10UV Protected Aluminum
    UVPAL5003-SBK750.83λ/4UV Protected Aluminum
    UVPAL5006-HBK750.86.35λ/10UV Protected Aluminum
    PAG1203-HBK712.73λ/10Protected Silver
    PAG2503-SBK725.43λ/4Protected Silver
    PAG2506-HBK725.46.35λ/10Protected Silver
    PAG5003-SBK750.83λ/4Protected Silver
    PAG5006-HBK750.86.35λ/10Protected Silver
    EAG1203-HBK712.73λ/10Enhanced Silver
    EAG2503-SBK725.43λ/4Enhanced Silver
    EAG2506-HBK725.46.35λ/10Enhanced Silver
    EAG5003-SBK750.83λ/4Enhanced Silver
    EAG5006-HBK750.86.35λ/10Enhanced Silver
    PAU1203-HBK712.73λ/10Protected Gold
    PAU2503-SBK725.43λ/4Protected Gold
    PAU2506-HBK725.46.35λ/10Protected Gold
    PAU5003-SBK750.83λ/4Protected Gold
    PAU5006-HBK750.86.35λ/10Protected Gold

    Coating Graphs of Metal Coated Flat Mirror:


    UV Protected Aluminum Coating

    50.8mm Metal Coated Mirror Protected Aluminum Coating AOI Insensitive Mirror

    Ravg>80%@250-700nm


    Enhanced Aluminum Coating

    50.8mm Metal Coated Mirror Protected Aluminum Coating AOI Insensitive Mirror

    Ravg>90%@400-700nm


    Protected Aluminum Coating

    50.8mm Metal Coated Mirror Protected Aluminum Coating AOI Insensitive Mirror

    Ravg>87%@400-1200nm


    Protected Silver Coating

    50.8mm Metal Coated Mirror Protected Aluminum Coating AOI Insensitive Mirror

    Ravg>95%@400-12000nm

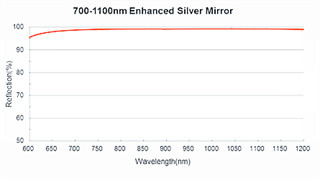

    Enhanced Silver Coating

    50.8mm Metal Coated Mirror Protected Aluminum Coating AOI Insensitive Mirror

    Ravg>98.5%@700-1100nm


    Protected Gold Coating

    50.8mm Metal Coated Mirror Protected Aluminum Coating AOI Insensitive Mirror

    Ravg>98%@2000-12000nm
